Miniature Laser Rangefinder

The DYA-09C Laser Rangefinder (hereinafter referred to as the Laser Rangefinder) is aprecision optoelectronic device that emits laser beams at the target and calculates distancethrough laser flight time measurement. Equipped with a TTL communication interface, thisinstrument features outstanding performance and user-friendly operation. The laser wavelengthof this rangefinder is 905nm, which must not be directly viewed by human eyes.

DYA-09C

Main components are as follows:

a) Control and information processing circuit components;

b) Laser power supply circuit components;

c)Receiving and transmitting components;

The size is ≤26mmx25mmx17.5mm and the weight is ≤13g.

Contact now

Specification

Performance

a) Laser wavelength: 905nm±5nm;

b) Measurement range capability: ≥2000m (Target: large target, visibility: ≥8km, humidity.≤60%, target reflectivity: 0.3)

c) Measurement range blind area: ≤5m;

d) Measurement accuracy: <+1m (≤400m),<±(Lx0.3%)m (>400m);

e) Measurement frequency: single and continuous measurement.

f) Environmental suitability: Working temperature: -20°C~+60°C; Storage temperature:-40°C~+70°C.

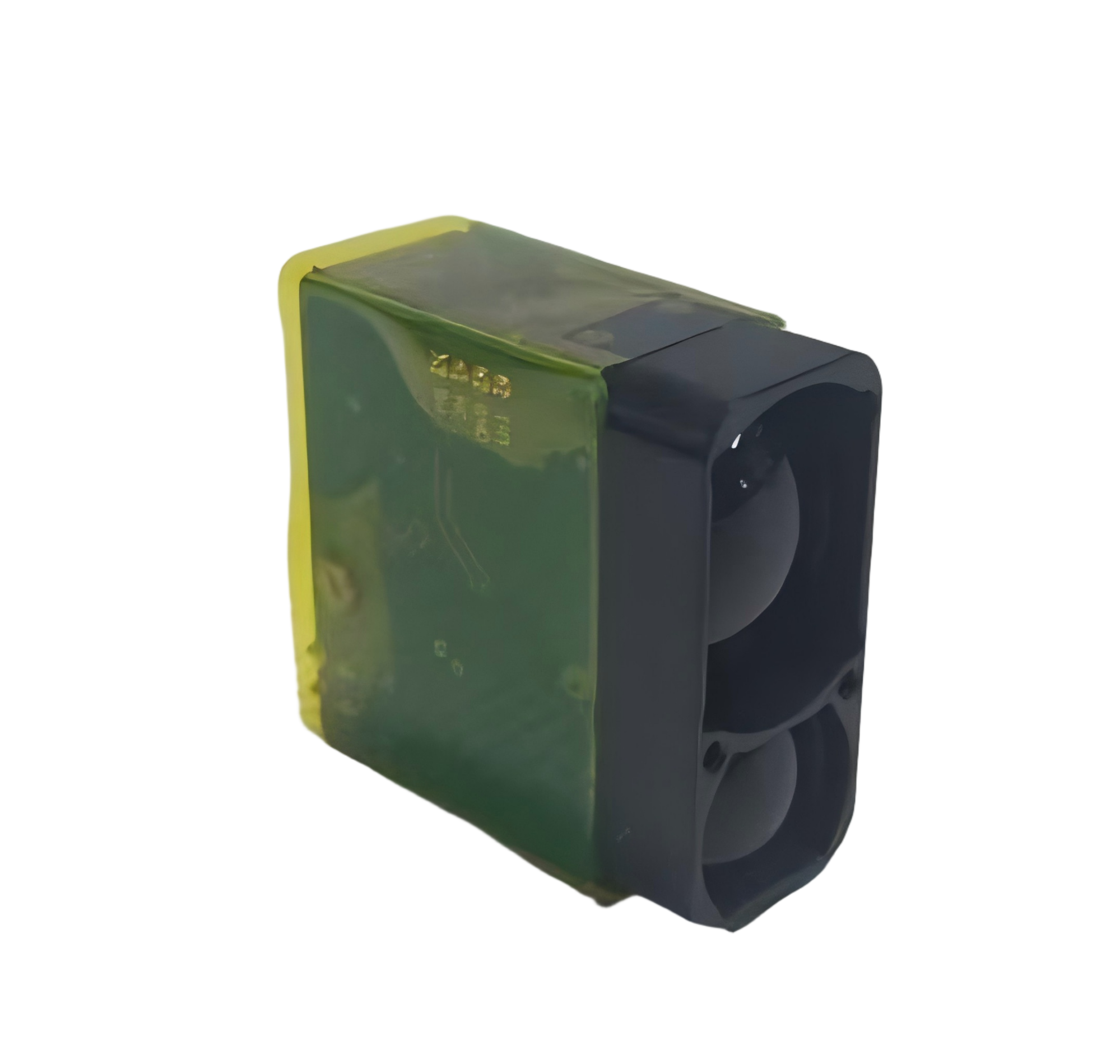

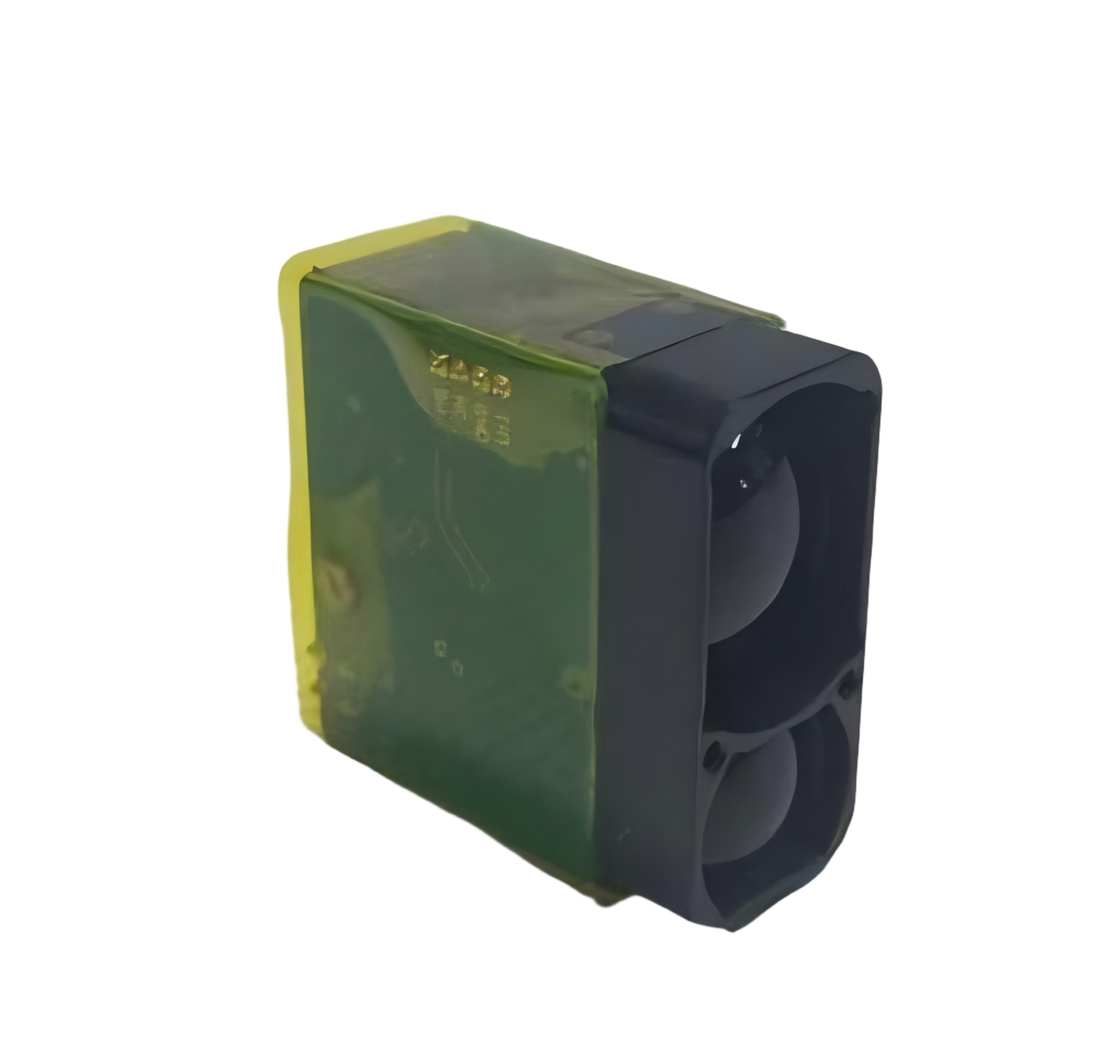

  • Side View

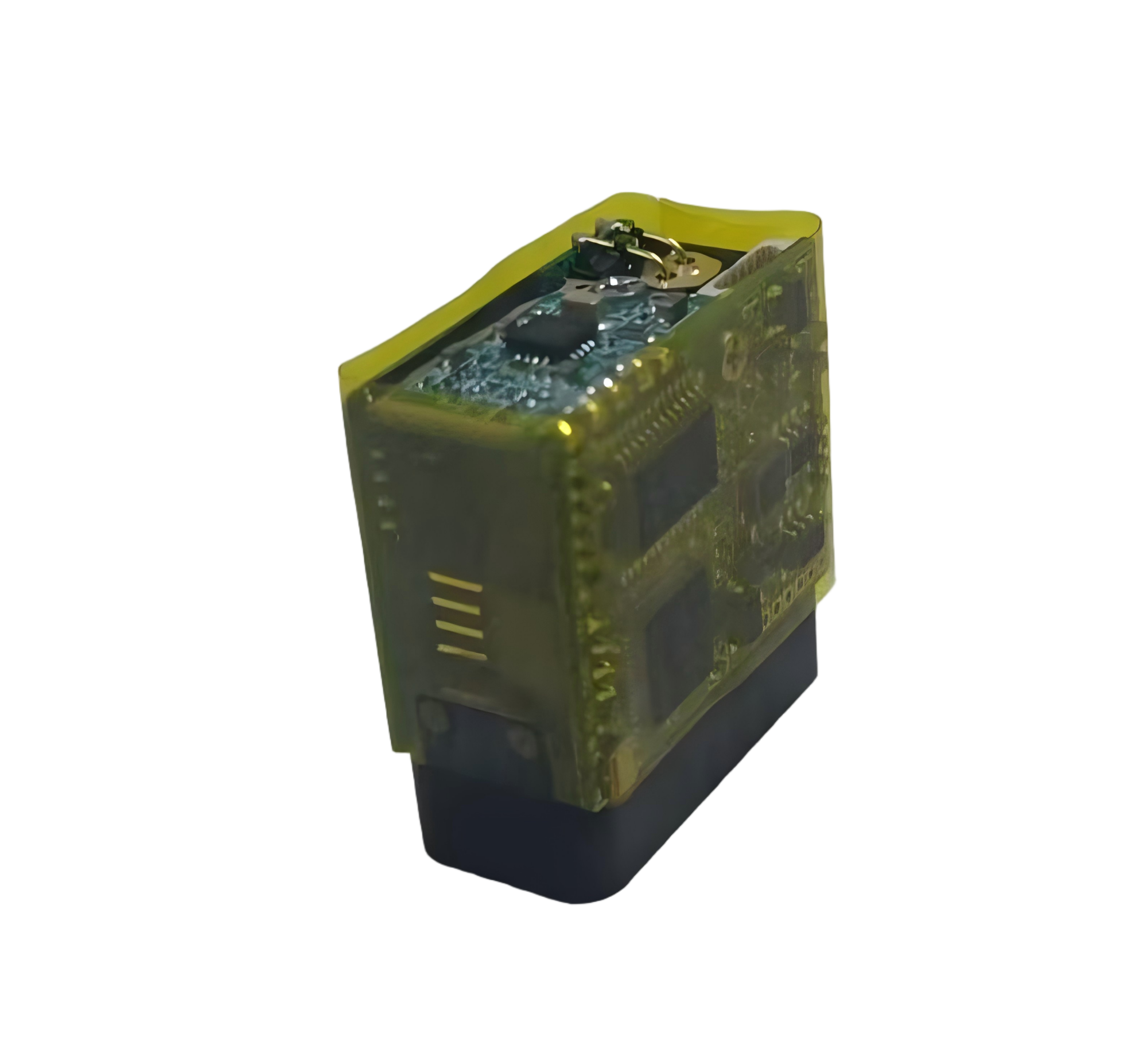

  • Side View

  • Bottom View
