Laser Holographic Sight

The laser holographic sight is a lightweight, non-magnifying optical sight designed specifically for close-quarters combat, enabling rapid target acquisition with both eyes open.

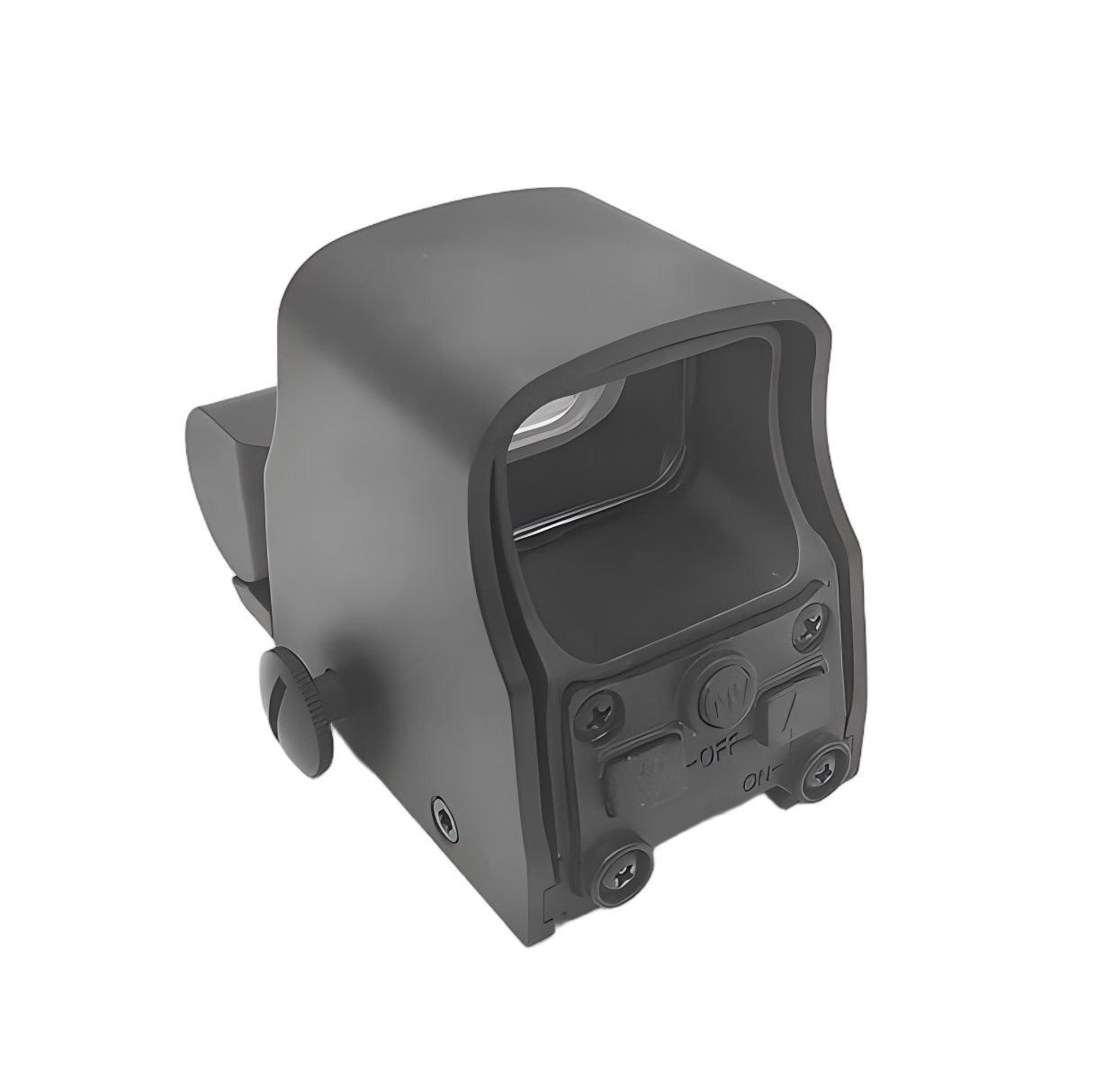

HS00

1-Quickly captures and aims at targets within a range of 300 meters.
2-Features a wide field of view, easy eye alignment, simple aiming method, and fast target acquisition.
3-Suitable for complex environments, harsh weather conditions, and close-range combat.
4-Compatible with equipment featuring a Picatinny rail interface.
5-Interface options, rechargeable batteries, and adjustable brightness levels are available upon customer request to meet customized needs.

Contact now

Specification

Product name: Laser Holographic Sight
Model: HSOO / HS00-1
Magnification: 1×
Field of view: 16° × 10°
Eye relief / Sighting eye position: Unlimited (no restriction)
Parallax: ≤ ±2′ (arcminutes)
Zeroing accuracy (including repeat mounting): ≤ ±5′ (arcminutes)
Reticle adjustment range: elevation ±10 mil or more; windage ±10 mil or more
Battery: CR123A or CR123
External dimensions: 92 mm × 65 mm × 59 mm
Weight: < 280 g
Mounting interface: Picatinny
Continuous operation time: ≥ 500 h (reticle set to medium brightness)
Reticle brightness: adjustable (9 + 3 levels)
Low-voltage warning: reticle flashes
Customizable mounting options: quick-detach mount (weight < 300g)

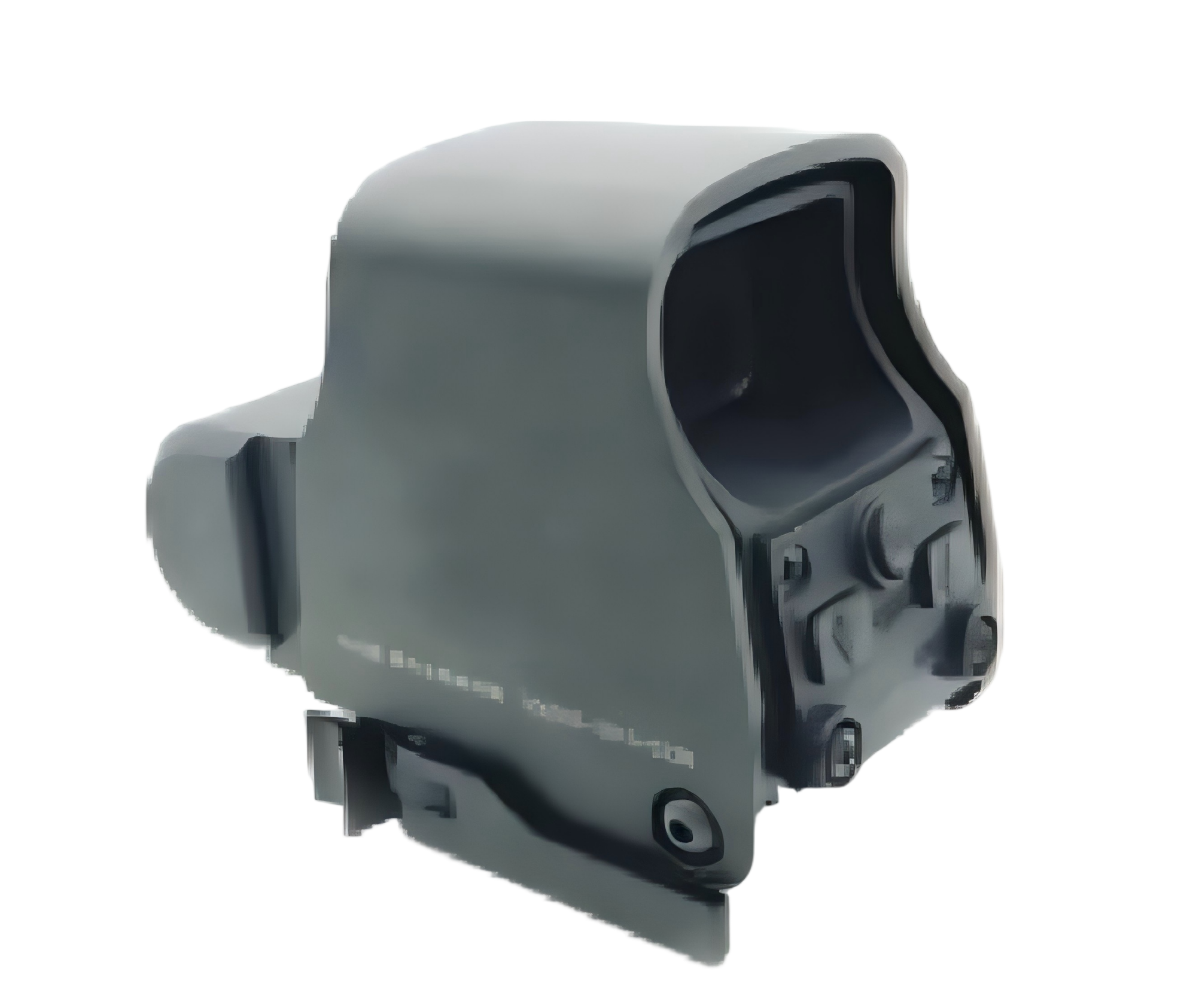

  • HS00-QUICK DETACH

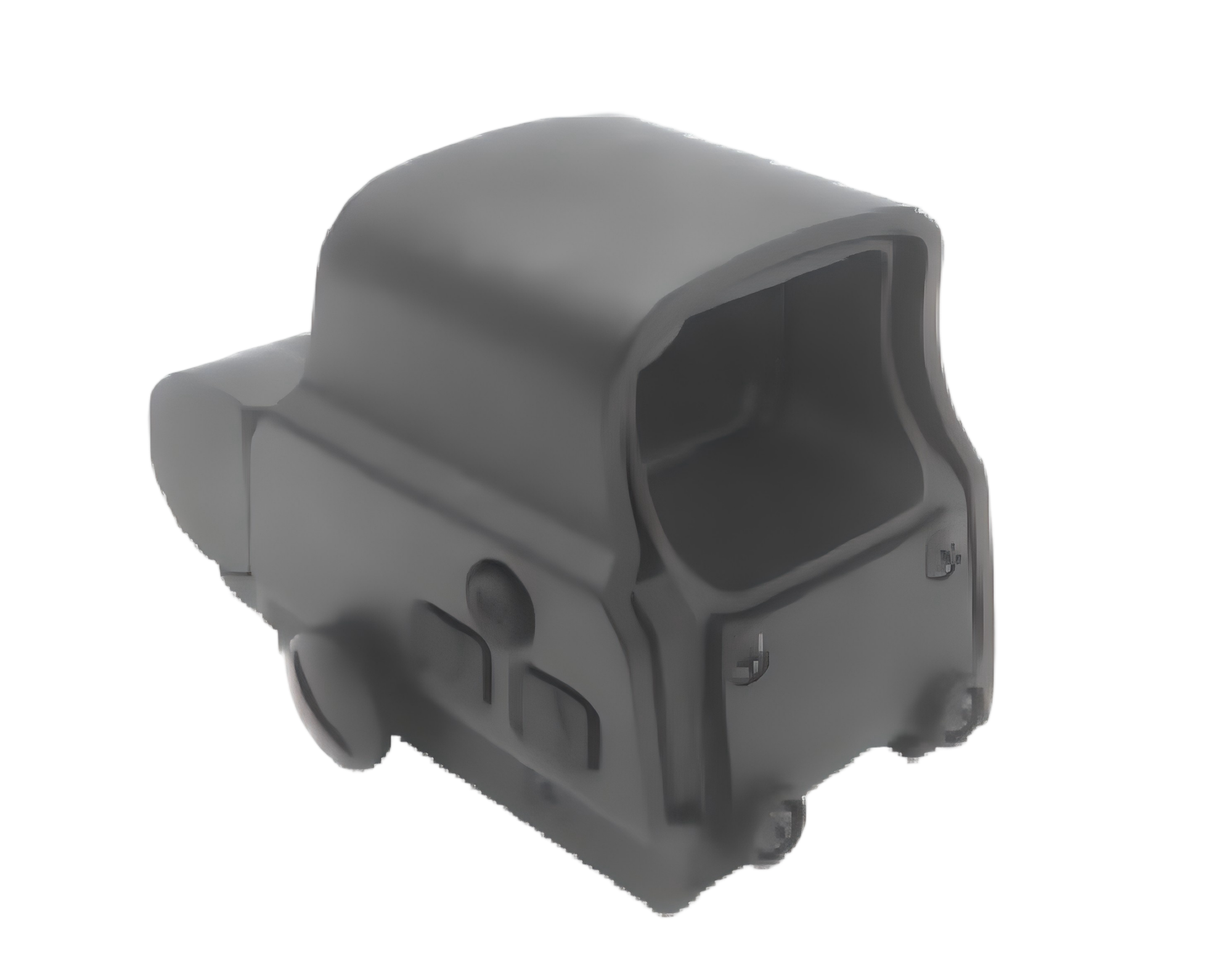

  • HS00-1-SIDE BUTTON
