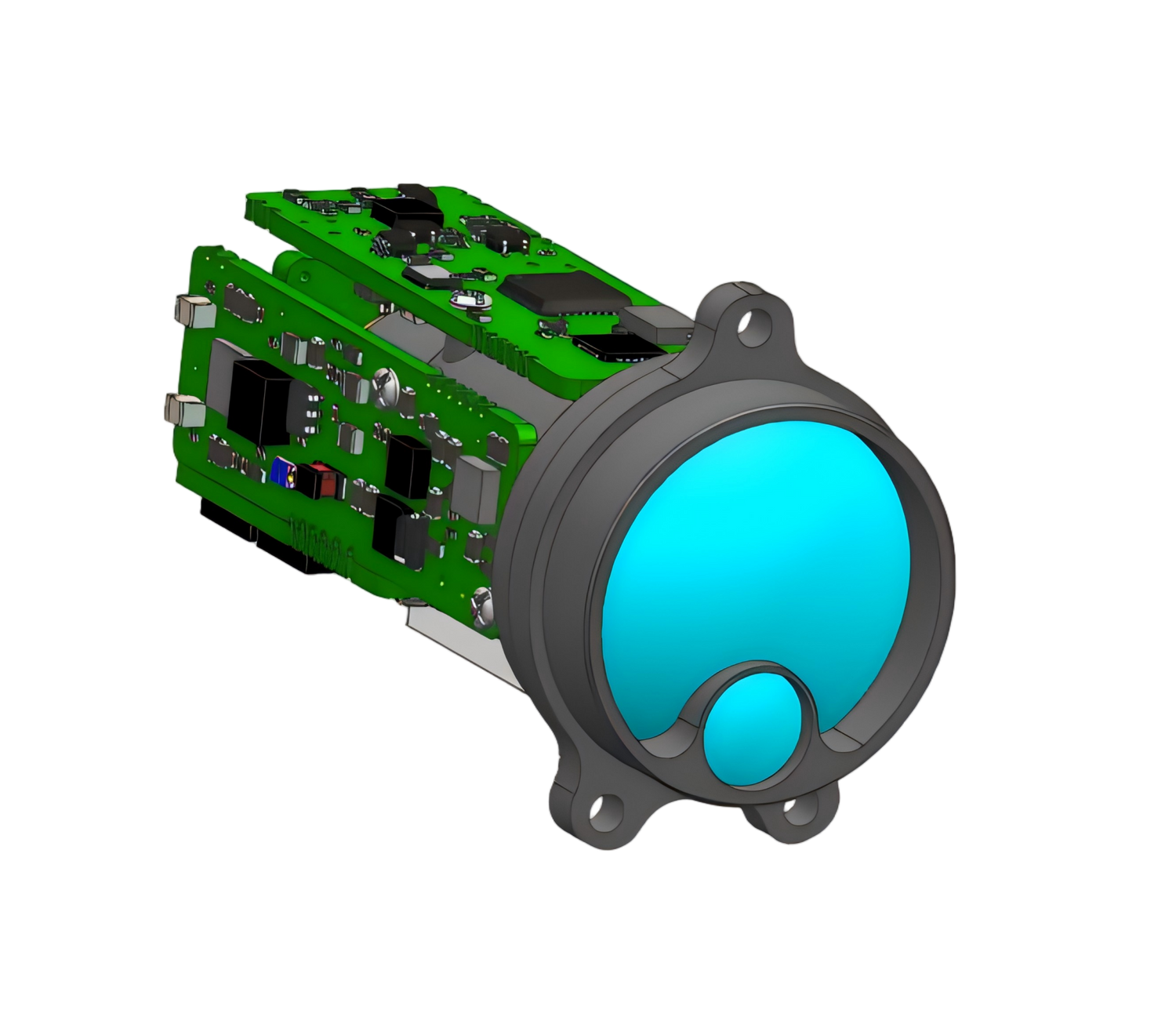

Miniature Laser Rangefinder

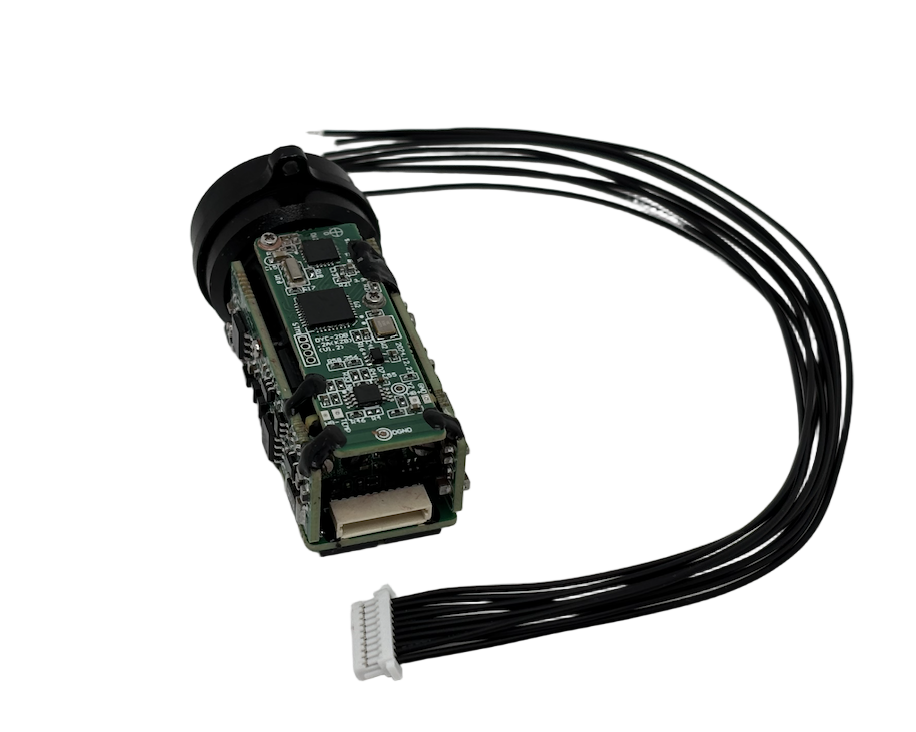

The DYC-20B Laser Rangefinder (hereinafter referred to as the Laser Rangefinder) is aprecision optoelectronic device that emits laser beams at the target and calculates distancethrough laser flight time measurement. Equipped with a TTL communication interface, thisinstrument features outstanding performance and user-friendly operation. The laser wavelengthof this rangefinder is 1535nm, which must not be directly viewed by human eyes.

DYC-20B

Main components are as follows:

a) Control and information processing circuit components;

b) Laser power supply circuit components;

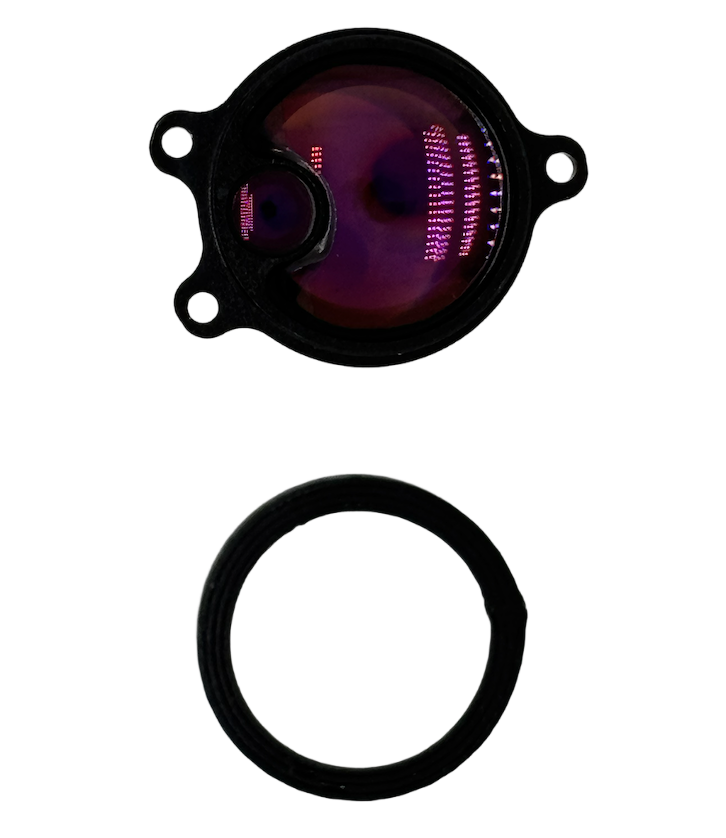

c)Receiving and transmitting components;

The size is ≤⌀34mmx55mm and the weight is ≤45g.

Video

Specification

Performance

a) Laser wavelength: 1535nm±5nm;

b) Measurement range capability: ≥2500m (Target: large target, visibility: ≥8km, humidity.<60%, target reflectivity: 0.3);

c) Measurement range blind area: <15m;

d) Measurement accuracy: <±1m;

e) Measurement frequency: single and continuous measurement.

f) Environmental suitability: Working temperature: -40°C~+60°C; Storage temperature:-55°C~+70°C.

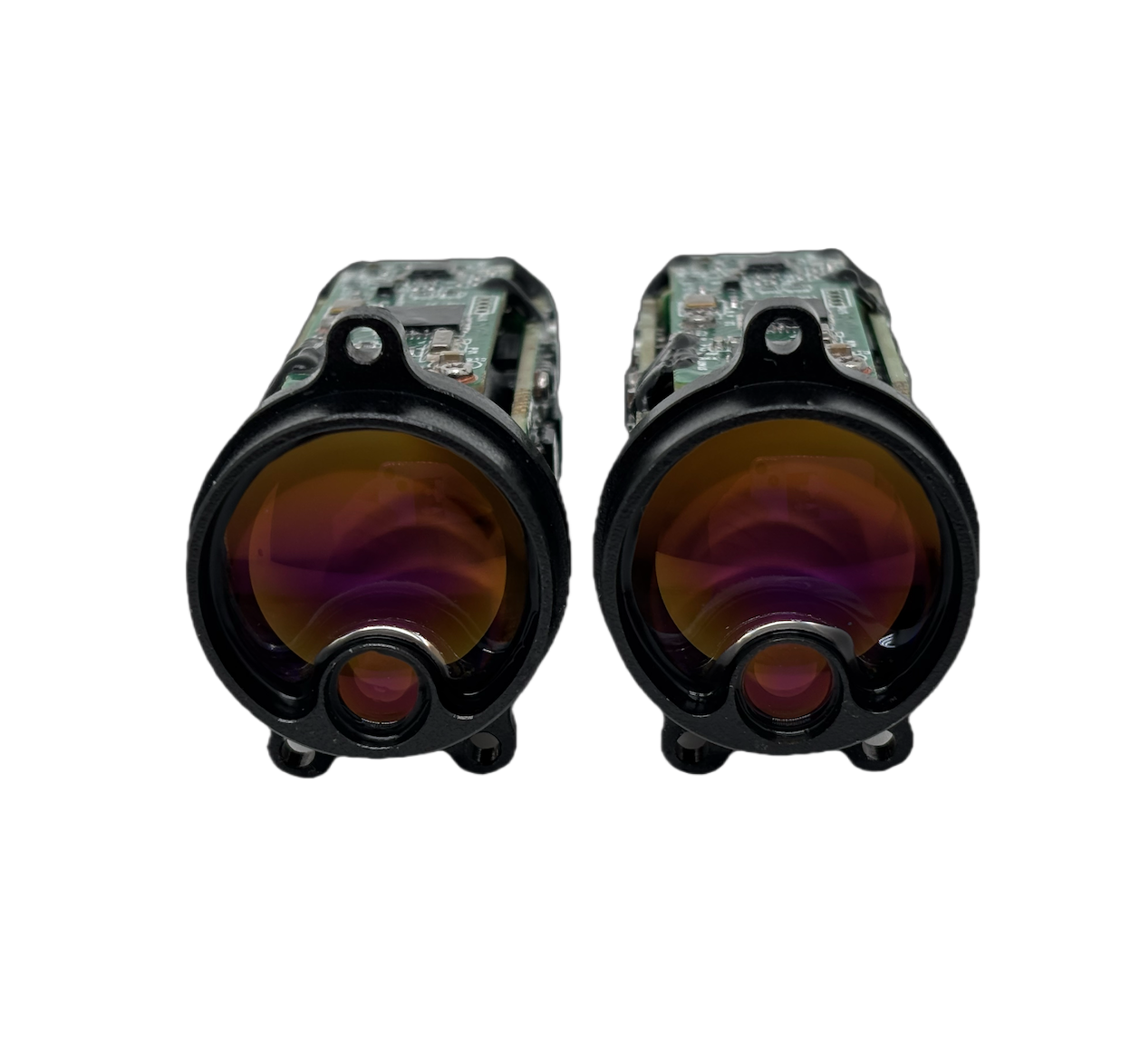

  • Front View

  • Side View

  • Top View
